1. Product Basics and Microstructural Design
1.1 Structure and Crystallographic Security of Alumina

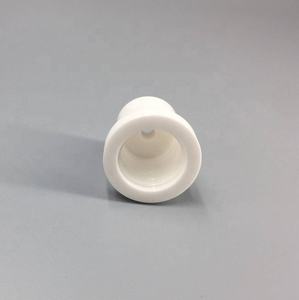

(Alumina Ceramic Nozzles)
Alumina (Al Two O FIVE), specifically in its alpha stage, is a completely oxidized ceramic with a corundum-type hexagonal close-packed structure, supplying outstanding thermal security, chemical inertness, and mechanical strength at raised temperatures.
High-purity alumina (usually 95– 99.9% Al Two O FOUR) is preferred for nozzle applications as a result of its minimal impurity material, which minimizes grain boundary weakening and boosts resistance to thermal and chemical destruction.
The microstructure, including penalty, equiaxed grains, is crafted during sintering to reduce porosity and maximize density, straight influencing the nozzle’s disintegration resistance and structural integrity under high-velocity liquid flow.
Additives such as MgO are usually introduced in trace total up to hinder irregular grain growth during sintering, ensuring an uniform microstructure that sustains long-term dependability.
1.2 Mechanical and Thermal Features Relevant to Nozzle Efficiency
Alumina porcelains display a Vickers firmness surpassing 1800 HV, making them extremely resistant to unpleasant wear from particulate-laden liquids, a vital attribute in applications such as sandblasting and rough waterjet cutting.
With a flexural toughness of 300– 500 MPa and a compressive toughness over 2 Grade point average, alumina nozzles maintain dimensional stability under high-pressure procedure, typically ranging from 100 to 400 MPa in commercial systems.
Thermally, alumina keeps its mechanical homes approximately 1600 ° C, with a reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) that gives exceptional resistance to thermal shock– essential when exposed to rapid temperature variations throughout start-up or closure cycles.
Its thermal conductivity (~ 30 W/m · K) suffices to dissipate local heat without inducing thermal gradients that could cause cracking, balancing insulation and warm management needs.
2. Manufacturing Processes and Geometric Precision
2.1 Forming and Sintering Methods for Nozzle Fabrication
The production of alumina ceramic nozzles begins with high-purity alumina powder, which is refined into a green body utilizing approaches such as chilly isostatic pushing (CIP), shot molding, or extrusion, relying on the desired geometry and batch dimension.
( Alumina Ceramic Nozzles)
Cold isostatic pushing applies uniform stress from all directions, generating a homogeneous density distribution crucial for decreasing defects throughout sintering.
Injection molding is employed for intricate nozzle shapes with interior tapers and great orifices, enabling high dimensional accuracy and reproducibility in automation.
After shaping, the environment-friendly compacts undertake a two-stage thermal treatment: debinding to get rid of organic binders and sintering at temperatures between 1500 ° C and 1650 ° C to accomplish near-theoretical density with solid-state diffusion.
Exact control of sintering environment and heating/cooling prices is essential to protect against bending, cracking, or grain coarsening that could compromise nozzle performance.
2.2 Machining, Sprucing Up, and Quality Assurance
Post-sintering, alumina nozzles commonly call for precision machining to achieve tight tolerances, specifically in the orifice region where flow characteristics are most conscious surface area finish and geometry.
Diamond grinding and splashing are used to fine-tune inner and external surface areas, achieving surface area roughness worths listed below 0.1 µm, which decreases flow resistance and protects against particle buildup.
The orifice, typically ranging from 0.3 to 3.0 mm in size, have to be devoid of micro-cracks and chamfers to make sure laminar circulation and consistent spray patterns.
Non-destructive testing methods such as optical microscopy, X-ray assessment, and stress biking tests are used to confirm architectural stability and efficiency uniformity before release.
Custom geometries, consisting of convergent-divergent (de Laval) accounts for supersonic circulation or multi-hole varieties for follower spray patterns, are significantly made making use of sophisticated tooling and computer-aided layout (CAD)-driven manufacturing.
3. Practical Benefits Over Different Nozzle Materials
3.1 Superior Erosion and Rust Resistance
Contrasted to metallic (e.g., tungsten carbide, stainless-steel) or polymer nozzles, alumina exhibits far greater resistance to unpleasant wear, particularly in environments involving silica sand, garnet, or various other difficult abrasives used in surface area preparation and cutting.
Steel nozzles weaken rapidly because of micro-fracturing and plastic deformation, calling for regular substitute, whereas alumina nozzles can last 3– 5 times much longer, significantly minimizing downtime and functional prices.
Additionally, alumina is inert to the majority of acids, antacid, and solvents, making it appropriate for chemical spraying, etching, and cleansing processes where metal parts would wear away or pollute the fluid.
This chemical stability is especially valuable in semiconductor manufacturing, pharmaceutical processing, and food-grade applications requiring high purity.
3.2 Thermal and Electric Insulation Quality
Alumina’s high electric resistivity (> 10 ¹⁴ Ω · cm) makes it excellent for use in electrostatic spray coating systems, where it avoids charge leakage and makes certain consistent paint atomization.
Its thermal insulation capability permits risk-free operation in high-temperature splashing atmospheres, such as fire spraying or thermal cleaning, without warm transfer to bordering elements.
Unlike metals, alumina does not catalyze undesirable chemical reactions in reactive fluid streams, maintaining the honesty of sensitive solutions.
4. Industrial Applications and Technological Effect
4.1 Roles in Abrasive Jet Machining and Surface Area Therapy
Alumina ceramic nozzles are vital in unpleasant blasting systems for rust removal, paint stripping, and surface area texturing in automotive, aerospace, and building and construction industries.
Their ability to preserve a constant orifice size over expanded use makes certain uniform abrasive velocity and influence angle, directly influencing surface coating top quality and process repeatability.
In unpleasant waterjet cutting, alumina focusing tubes direct the high-pressure water-abrasive mixture, withstanding erosive pressures that would swiftly deteriorate softer materials.
4.2 Usage in Additive Production, Spray Covering, and Liquid Control
In thermal spray systems, such as plasma and flame splashing, alumina nozzles straight high-temperature gas flows and molten particles onto substrates, benefiting from their thermal shock resistance and dimensional security.
They are additionally utilized in precision spray nozzles for farming chemicals, inkjet systems, and fuel atomization, where wear resistance ensures lasting dosing precision.
In 3D printing, particularly in binder jetting and product extrusion, alumina nozzles supply fine powders or viscous pastes with very little blocking or put on.
Arising applications include microfluidic systems and lab-on-a-chip gadgets, where miniaturized alumina parts offer resilience and biocompatibility.
In recap, alumina ceramic nozzles represent a crucial crossway of materials science and industrial engineering.
Their exceptional combination of hardness, thermal stability, and chemical resistance enables reliable efficiency in a few of one of the most demanding liquid handling atmospheres.
As industrial processes push towards higher stress, finer tolerances, and longer service intervals, alumina porcelains continue to establish the standard for durable, high-precision flow control parts.
