Intro to Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic product that has obtained widespread recognition for its remarkable thermal conductivity, electric insulation, and mechanical stability at raised temperature levels. With a hexagonal wurtzite crystal structure, AlN displays a special mix of properties that make it one of the most perfect substratum material for applications in electronic devices, optoelectronics, power modules, and high-temperature settings. Its capacity to effectively dissipate warmth while maintaining outstanding dielectric stamina placements AlN as a premium choice to traditional ceramic substrates such as alumina and beryllium oxide. This short article checks out the fundamental features of aluminum nitride porcelains, looks into fabrication techniques, and highlights its essential roles across sophisticated technical domain names.

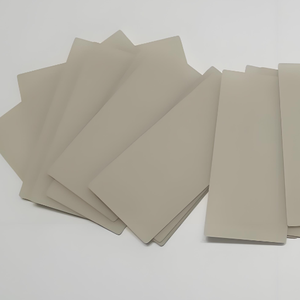

(Aluminum Nitride Ceramics)
Crystal Framework and Basic Residence
The performance of aluminum nitride as a substratum material is greatly dictated by its crystalline framework and inherent physical residential or commercial properties. AlN adopts a wurtzite-type lattice composed of alternating aluminum and nitrogen atoms, which adds to its high thermal conductivity– usually exceeding 180 W/(m · K), with some high-purity examples attaining over 320 W/(m · K). This worth significantly goes beyond those of other widely utilized ceramic materials, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal performance, AlN possesses a wide bandgap of roughly 6.2 eV, leading to outstanding electric insulation residential or commercial properties also at heats. It additionally shows low thermal development (CTE ≈ 4.5 × 10 ⁻⁶/ K), which very closely matches that of silicon and gallium arsenide, making it an optimal suit for semiconductor gadget packaging. Moreover, AlN displays high chemical inertness and resistance to thaw steels, enhancing its suitability for severe atmospheres. These combined attributes develop AlN as a prominent candidate for high-power digital substratums and thermally took care of systems.
Construction and Sintering Technologies
Making high-quality light weight aluminum nitride ceramics needs exact powder synthesis and sintering methods to achieve dense microstructures with very little contaminations. Because of its covalent bonding nature, AlN does not conveniently compress via conventional pressureless sintering. For that reason, sintering aids such as yttrium oxide (Y ₂ O FIVE), calcium oxide (CaO), or unusual earth elements are typically contributed to advertise liquid-phase sintering and boost grain boundary diffusion.
The construction process usually starts with the carbothermal reduction of light weight aluminum oxide in a nitrogen atmosphere to synthesize AlN powders. These powders are after that crushed, shaped by means of methods like tape casting or shot molding, and sintered at temperatures between 1700 ° C and 1900 ° C under a nitrogen-rich ambience. Warm pushing or trigger plasma sintering (SPS) can additionally improve density and thermal conductivity by decreasing porosity and promoting grain alignment. Advanced additive manufacturing techniques are also being explored to make complex-shaped AlN elements with customized thermal administration capabilities.
Application in Electronic Product Packaging and Power Modules
One of one of the most popular uses of aluminum nitride porcelains is in digital product packaging, especially for high-power devices such as shielded gate bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power densities enhance in contemporary electronics, reliable heat dissipation comes to be critical to ensure dependability and longevity. AlN substrates give an optimum service by combining high thermal conductivity with exceptional electrical isolation, preventing short circuits and thermal runaway conditions.
In addition, AlN-based direct bound copper (DBC) and energetic metal brazed (AMB) substratums are progressively employed in power component styles for electric cars, renewable resource inverters, and commercial motor drives. Compared to traditional alumina or silicon nitride substratums, AlN uses quicker heat transfer and much better compatibility with silicon chip coefficients of thermal expansion, thus lowering mechanical anxiety and improving general system performance. Recurring research study intends to enhance the bonding stamina and metallization methods on AlN surface areas to additional expand its application range.
Usage in Optoelectronic and High-Temperature Tools
Past digital product packaging, aluminum nitride ceramics play a crucial duty in optoelectronic and high-temperature applications due to their transparency to ultraviolet (UV) radiation and thermal stability. AlN is extensively used as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, especially in applications calling for sanitation, sensing, and optical interaction. Its large bandgap and low absorption coefficient in the UV range make it a suitable prospect for supporting light weight aluminum gallium nitride (AlGaN)-based heterostructures.
Additionally, AlN’s ability to function reliably at temperatures going beyond 1000 ° C makes it appropriate for usage in sensors, thermoelectric generators, and elements exposed to extreme thermal lots. In aerospace and defense industries, AlN-based sensor bundles are utilized in jet engine surveillance systems and high-temperature control systems where conventional products would stop working. Continual advancements in thin-film deposition and epitaxial development techniques are broadening the possibility of AlN in next-generation optoelectronic and high-temperature integrated systems.

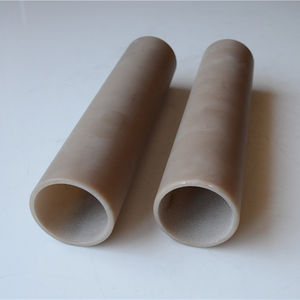

( Aluminum Nitride Ceramics)
Environmental Security and Long-Term Dependability
A key consideration for any kind of substrate material is its long-lasting integrity under operational anxieties. Aluminum nitride shows premium ecological security contrasted to numerous other porcelains. It is highly immune to deterioration from acids, alkalis, and molten steels, making certain sturdiness in hostile chemical settings. However, AlN is susceptible to hydrolysis when subjected to dampness at raised temperature levels, which can degrade its surface area and reduce thermal efficiency.
To reduce this issue, protective finishings such as silicon nitride (Si three N ₄), aluminum oxide, or polymer-based encapsulation layers are usually applied to improve dampness resistance. In addition, careful sealing and product packaging strategies are implemented during tool assembly to maintain the integrity of AlN substrates throughout their service life. As ecological laws come to be much more stringent, the non-toxic nature of AlN also positions it as a preferred choice to beryllium oxide, which positions health and wellness risks throughout processing and disposal.
Conclusion
Light weight aluminum nitride porcelains represent a course of sophisticated products distinctively suited to resolve the expanding needs for effective thermal monitoring and electric insulation in high-performance electronic and optoelectronic systems. Their exceptional thermal conductivity, chemical security, and compatibility with semiconductor technologies make them the most excellent substratum product for a wide range of applications– from vehicle power modules to deep UV LEDs and high-temperature sensors. As construction technologies remain to develop and cost-effective manufacturing approaches grow, the adoption of AlN substratums is expected to rise substantially, driving development in next-generation digital and photonic devices.
