Intro: Secret tools in power electronics
Silicon-controlled rectifiers (SCRs), also referred to as thyristors, are semiconductor power tools with a four-layer triple junction framework (PNPN). Since its introduction in the 1950s, SCRs have been widely made use of in commercial automation, power systems, home device control and various other fields as a result of their high withstand voltage, big current lugging ability, fast response and basic control. With the development of innovation, SCRs have actually advanced into many types, consisting of unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The differences in between these kinds are not only reflected in the structure and working principle, but likewise determine their applicability in various application situations. This write-up will begin with a technological perspective, integrated with specific specifications, to deeply assess the major differences and normal uses these four SCRs.
Unidirectional SCR: Fundamental and secure application core
Unidirectional SCR is one of the most basic and typical sort of thyristor. Its structure is a four-layer three-junction PNPN arrangement, including three electrodes: anode (A), cathode (K) and gateway (G). It just allows current to flow in one direction (from anode to cathode) and switches on after eviction is triggered. As soon as turned on, also if eviction signal is gotten rid of, as long as the anode current is higher than the holding present (usually much less than 100mA), the SCR stays on.

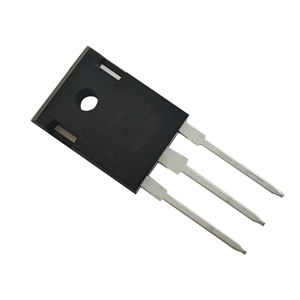

(Thyristor Rectifier)
Unidirectional SCR has strong voltage and present resistance, with an onward repeated top voltage (V DRM) of as much as 6500V and a rated on-state typical current (ITAV) of as much as 5000A. As a result, it is extensively utilized in DC motor control, industrial furnace, uninterruptible power supply (UPS) rectification parts, power conditioning devices and other events that need continual conduction and high power processing. Its benefits are simple structure, affordable and high reliability, and it is a core part of lots of traditional power control systems.
Bidirectional SCR (TRIAC): Ideal for a/c control
Unlike unidirectional SCR, bidirectional SCR, additionally known as TRIAC, can attain bidirectional conduction in both positive and negative half cycles. This structure consists of two anti-parallel SCRs, which allow TRIAC to be set off and activated any time in the air conditioner cycle without changing the circuit link approach. The in proportion transmission voltage variety of TRIAC is typically ± 400 ~ 800V, the optimum tons current is about 100A, and the trigger current is much less than 50mA.
Because of the bidirectional transmission qualities of TRIAC, it is particularly ideal for a/c dimming and speed control in house devices and customer electronic devices. For instance, devices such as lamp dimmers, fan controllers, and air conditioning unit fan rate regulators all depend on TRIAC to accomplish smooth power policy. Additionally, TRIAC likewise has a reduced driving power demand and is suitable for integrated layout, so it has actually been commonly made use of in smart home systems and small home appliances. Although the power density and switching rate of TRIAC are not just as good as those of brand-new power tools, its low cost and convenient use make it an essential gamer in the field of small and moderate power air conditioning control.
Gateway Turn-Off Thyristor (GTO): A high-performance representative of energetic control
Gate Turn-Off Thyristor (GTO) is a high-performance power gadget developed on the basis of traditional SCR. Unlike average SCR, which can only be turned off passively, GTO can be turned off actively by applying an adverse pulse current to the gate, therefore achieving even more flexible control. This feature makes GTO do well in systems that require frequent start-stop or quick feedback.

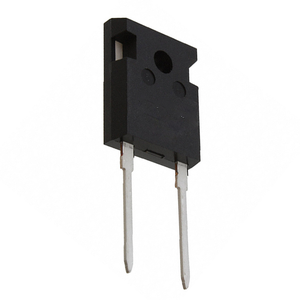

(Thyristor Rectifier)
The technological specifications of GTO reveal that it has exceptionally high power taking care of capacity: the turn-off gain has to do with 4 ~ 5, the optimum operating voltage can get to 6000V, and the optimum operating current depends on 6000A. The turn-on time has to do with 1μs, and the turn-off time is 2 ~ 5μs. These efficiency signs make GTO commonly used in high-power scenarios such as electrical engine traction systems, huge inverters, industrial electric motor frequency conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is reasonably complex and has high changing losses, its performance under high power and high dynamic feedback requirements is still irreplaceable.
Light-controlled thyristor (LTT): A dependable option in the high-voltage seclusion atmosphere
Light-controlled thyristor (LTT) makes use of optical signals instead of electric signals to set off conduction, which is its greatest feature that identifies it from various other kinds of SCRs. The optical trigger wavelength of LTT is typically in between 850nm and 950nm, the reaction time is gauged in milliseconds, and the insulation degree can be as high as 100kV or above. This optoelectronic isolation system significantly boosts the system’s anti-electromagnetic interference capability and security.
LTT is mainly made use of in ultra-high voltage direct present transmission (UHVDC), power system relay protection tools, electro-magnetic compatibility protection in medical devices, and armed forces radar communication systems and so on, which have very high requirements for security and stability. As an example, numerous converter stations in China’s “West-to-East Power Transmission” project have embraced LTT-based converter valve modules to make sure secure procedure under incredibly high voltage conditions. Some advanced LTTs can additionally be combined with gateway control to accomplish bidirectional conduction or turn-off functions, even more increasing their application variety and making them an excellent option for addressing high-voltage and high-current control problems.
