1. Material Principles and Structural Quality
1.1 Crystal Chemistry and Polymorphism

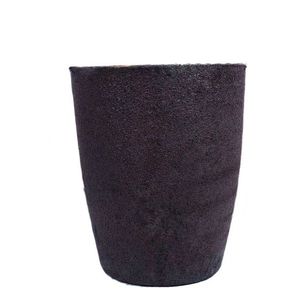

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms prepared in a tetrahedral lattice, forming among one of the most thermally and chemically durable products understood.
It exists in over 250 polytypic types, with the 3C (cubic), 4H, and 6H hexagonal structures being most pertinent for high-temperature applications.
The solid Si– C bonds, with bond power surpassing 300 kJ/mol, give extraordinary solidity, thermal conductivity, and resistance to thermal shock and chemical attack.
In crucible applications, sintered or reaction-bonded SiC is preferred due to its ability to maintain structural honesty under extreme thermal gradients and harsh molten atmospheres.
Unlike oxide ceramics, SiC does not undergo disruptive stage shifts approximately its sublimation point (~ 2700 ° C), making it perfect for sustained operation above 1600 ° C.
1.2 Thermal and Mechanical Performance
A specifying quality of SiC crucibles is their high thermal conductivity– varying from 80 to 120 W/(m · K)– which advertises uniform heat distribution and reduces thermal tension throughout rapid heating or cooling.
This home contrasts greatly with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are vulnerable to cracking under thermal shock.
SiC additionally displays excellent mechanical strength at elevated temperature levels, preserving over 80% of its room-temperature flexural stamina (approximately 400 MPa) also at 1400 ° C.
Its reduced coefficient of thermal expansion (~ 4.0 × 10 ⁻⁶/ K) better enhances resistance to thermal shock, a vital consider repeated biking in between ambient and operational temperature levels.
In addition, SiC demonstrates remarkable wear and abrasion resistance, making sure lengthy service life in atmospheres including mechanical handling or turbulent melt circulation.
2. Production Techniques and Microstructural Control

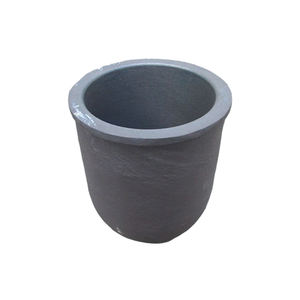

( Silicon Carbide Crucibles)
2.1 Sintering Techniques and Densification Strategies
Business SiC crucibles are primarily made through pressureless sintering, response bonding, or warm pressing, each offering distinctive advantages in cost, pureness, and performance.
Pressureless sintering involves compacting fine SiC powder with sintering help such as boron and carbon, followed by high-temperature therapy (2000– 2200 ° C )in inert ambience to accomplish near-theoretical density.
This method yields high-purity, high-strength crucibles ideal for semiconductor and progressed alloy processing.
Reaction-bonded SiC (RBSC) is produced by penetrating a porous carbon preform with liquified silicon, which responds to form β-SiC sitting, leading to a compound of SiC and recurring silicon.
While slightly lower in thermal conductivity due to metal silicon additions, RBSC provides outstanding dimensional security and reduced production price, making it preferred for large industrial use.
Hot-pressed SiC, though more pricey, provides the greatest thickness and purity, reserved for ultra-demanding applications such as single-crystal growth.
2.2 Surface Top Quality and Geometric Accuracy
Post-sintering machining, including grinding and washing, makes sure accurate dimensional resistances and smooth internal surface areas that lessen nucleation websites and reduce contamination danger.
Surface roughness is carefully controlled to stop melt bond and assist in simple launch of strengthened products.
Crucible geometry– such as wall surface density, taper angle, and lower curvature– is maximized to balance thermal mass, architectural strength, and compatibility with furnace heating elements.
Customized layouts fit particular thaw quantities, heating accounts, and product reactivity, guaranteeing optimum performance throughout varied commercial procedures.
Advanced quality assurance, consisting of X-ray diffraction, scanning electron microscopy, and ultrasonic testing, validates microstructural homogeneity and absence of issues like pores or splits.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Hostile Environments
SiC crucibles show phenomenal resistance to chemical strike by molten metals, slags, and non-oxidizing salts, outperforming standard graphite and oxide ceramics.
They are stable touching liquified aluminum, copper, silver, and their alloys, withstanding wetting and dissolution because of reduced interfacial energy and development of safety surface oxides.
In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles protect against metal contamination that could degrade digital homes.
Nevertheless, under highly oxidizing problems or in the visibility of alkaline changes, SiC can oxidize to develop silica (SiO ₂), which might respond additionally to develop low-melting-point silicates.
As a result, SiC is best fit for neutral or minimizing environments, where its security is made the most of.
3.2 Limitations and Compatibility Considerations
Regardless of its effectiveness, SiC is not globally inert; it reacts with particular liquified products, especially iron-group metals (Fe, Ni, Co) at high temperatures via carburization and dissolution procedures.
In liquified steel handling, SiC crucibles degrade rapidly and are therefore avoided.
In a similar way, alkali and alkaline planet steels (e.g., Li, Na, Ca) can reduce SiC, launching carbon and forming silicides, restricting their use in battery material synthesis or reactive metal casting.
For liquified glass and ceramics, SiC is typically suitable however might introduce trace silicon into very sensitive optical or electronic glasses.
Recognizing these material-specific communications is essential for choosing the suitable crucible type and ensuring process pureness and crucible durability.
4. Industrial Applications and Technical Advancement
4.1 Metallurgy, Semiconductor, and Renewable Resource Sectors
SiC crucibles are vital in the manufacturing of multicrystalline and monocrystalline silicon ingots for solar batteries, where they hold up against extended direct exposure to thaw silicon at ~ 1420 ° C.
Their thermal security ensures uniform crystallization and decreases dislocation thickness, directly influencing solar performance.
In shops, SiC crucibles are used for melting non-ferrous metals such as aluminum and brass, offering longer service life and decreased dross formation contrasted to clay-graphite alternatives.
They are likewise used in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of advanced ceramics and intermetallic substances.
4.2 Future Fads and Advanced Material Combination
Arising applications consist of the use of SiC crucibles in next-generation nuclear products screening and molten salt activators, where their resistance to radiation and molten fluorides is being evaluated.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O FOUR) are being put on SiC surface areas to further boost chemical inertness and prevent silicon diffusion in ultra-high-purity processes.
Additive production of SiC components using binder jetting or stereolithography is under development, encouraging complicated geometries and rapid prototyping for specialized crucible designs.
As demand grows for energy-efficient, long lasting, and contamination-free high-temperature processing, silicon carbide crucibles will certainly continue to be a foundation modern technology in advanced products manufacturing.
Finally, silicon carbide crucibles represent an important allowing component in high-temperature commercial and clinical procedures.
Their unequaled mix of thermal stability, mechanical strength, and chemical resistance makes them the product of choice for applications where efficiency and dependability are paramount.
