1. Introduction to Oil Submersed Transformers
In the intricate web of our contemporary electrical grid, transformers play an important role, calmly tipping voltage backwards and forwards to make sure electricity can be transmitted successfully over long distances and distributed safely to our homes and markets. Amongst the various kinds offered, the oil submersed transformer stands as a testament to tested dependability and toughness. For years, these workhorses have actually created the foundation of power systems worldwide.
An oil submersed transformer is a sort of electric transformer that utilizes a customized shielding oil as both a coolant and an insulating medium. This design is predominantly made use of for medium to high-power applications, making it a cornerstone of electric facilities. This guide delves deep into the world of oil immersed power transformers and oil submersed distribution transformers, exploring their technology, applications, and their progressing duty in an era of digitalization and renewable resource.
1.1 What is an Oil Submersed Transformer?
At its core, an oil submersed transformer includes a magnetic core and copper or light weight aluminum windings housed inside a sealed storage tank full of protecting oil. The primary function of the oil is twofold:
1. Insulation: The oil possesses high dielectric strength, effectively insulating the high-voltage windings from the transformer’s core and based container. This stops brief circuits and electric failures.
2. Air conditioning: As the transformer operates, the windings create significant warm as a result of I ² R losses. The distributing oil absorbs this warm, convects it to the transformer’s storage tank wall surfaces, and dissipates it into the bordering air. Larger systems frequently include radiators or fins to enhance the surface for extra efficient cooling.
This dual-purpose use oil makes the oil immersed transformer incredibly effective and durable, efficient in managing high loads and standing up to short-term overloads much better than lots of dry-type alternatives.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these units are oil submersed transformers, they serve unique features within the power system network. Comprehending the difference is essential.
An oil immersed power transformer is a heavyweight, commonly made use of in transmission networks at creating stations and major substations. Their main role is to “step-up” the voltage created at the power plant to exceptionally high degrees (e.g., 138 kV, 230 kV, 500 kV and above) for effective long-distance transmission, and to “step-down” the voltage at obtaining substations for more circulation. They are defined by their extremely high power scores (usually going beyond 100 MVA), intricate building, and on-load faucet changers for voltage law.
An oil involved distribution transformer, on the other hand, executes the last step in the power distribution chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it to the reduced voltages (e.g., 400/230 V) used by industrial and residential customers. You frequently find them on utility poles (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have lower power scores (usually approximately 2,500 kVA), and are created for optimal efficiency at reduced, a lot more constant loads.

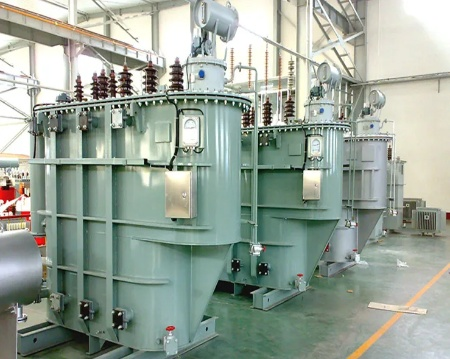

(Oil immersed power transformer)
2. Secret Benefits of Oil Immersed Transformers
The enduring popularity of the oil submersed transformer is not accidental. It offers a collection of engaging benefits that make it the recommended choice for several demanding applications.
2.1 Superior Air Conditioning and Overload Capability
The remarkable thermal ability of oil contrasted to air allows an oil immersed power transformer to manage and dissipate heat much more effectively. This converts to a greater overload capability. During periods of optimal electrical power need, an oil immersed transformer can deal with temporary overloads without receiving damages, an essential feature for keeping grid security. The oil’s blood circulation makes certain even heat circulation, preventing local locations that can degrade insulation over time.
2.2 Boosted Insulation and Long Service Life
The mix of high-grade mineral oil and diligently impregnated paper insulation creates a dielectric system of exceptional stamina. This durable insulation system shields the transformer from voltage surges and transients, adding to a functional life expectancy that can encompass 30-40 years or even more with proper upkeep. The sealed tank additionally secures the inner elements from dampness, dust, and other climatic contaminants.
2.3 High Effectiveness and Cost-Effectiveness
For high-power applications, the oil submersed transformer is typically one of the most affordable choice. The products made use of– mineral oil, steel tank, and copper/aluminum windings– offer a positive balance of performance and cost. The high performance of these transformers, particularly at their rated lots, results in lower energy losses over their lifetime, leading to considerable expense financial savings for utility companies and huge commercial users.
3. Hot Subjects and Future Trends
The globe of oil submersed transformers is not fixed. It is continually advancing to fulfill brand-new difficulties and incorporate with modern-day innovations.
3.1 Eco-friendly and Fire-Resistant Oils
Environmental and security concerns are driving a substantial change far from traditional mineral oil. The market is quickly embracing oil immersed transformers full of eco-friendly esters (synthetic or all-natural). These oils supply a higher fire point (making them K-class fireproof), are less harmful, and are readily eco-friendly, significantly reducing the ecological impact in case of a leakage. This trend is making oil submersed circulation transformers more secure for installment in metropolitan locations and eco sensitive places.
3.2 Combination with Smart Grids and IoT
The modern oil involved power transformer is coming to be an intelligent node in the wise grid. Sensing units are being incorporated to check crucial specifications in real-time, including:
Dissolved Gas Analysis (DGA): Discovering mistake gases generated within the oil to anticipate incipient faults.
Temperature Surveillance: Tracking top-oil and hotspot temperature levels.
Tons and Power Quality Surveillance.
This data, transmitted by means of IoT (Net of Things) platforms, enables predictive maintenance, stops unintended outages, and enhances transformer use and lifespan.
3.3 Supporting the Renewable Energy Shift
The global push for renewables is developing brand-new need for oil submersed transformers. Large-scale solar ranches and wind power installments require durable oil submersed power transformers to tip up the generated voltage to transmission levels. Additionally, the periodic nature of renewables places higher stress and anxiety on grid components, and the proven dependability and overload capability of oil submersed transformers make them ideal for this critical role.
4. Option and Maintenance Ideal Practices
Selecting the ideal transformer and maintaining it appropriately is vital to a trustworthy power system.
4.1 Just how to Select the Right Oil Immersed Transformer
Selecting in between an oil immersed power transformer and an oil immersed circulation transformer relies on the application. Key factors to consider consist of:
1. Voltage Degree and kVA Rating: Suit the transformer’s specs to your system’s requirements.
2. Application: Transmission substation, plant, or industrial circulation.
3. Location: Indoor vs. exterior, environmental problems, and fire security guidelines (which may affect the selection of shielding oil).
4. Performance Requirements: Abide by regional performance criteria like DOE (U.S.A.) or EU CoC (Europe).
5. Spending plan: Take into consideration both the initial resources price and the complete expense of possession, including losses.

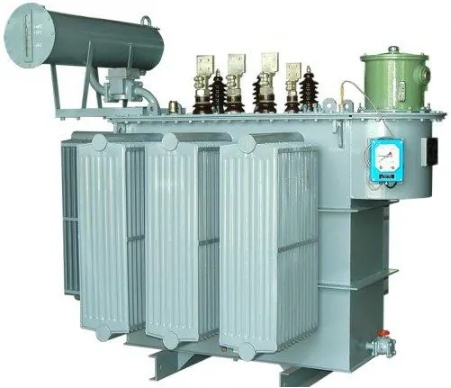

(Oil immersed distribution transformer)
4.2 Essential Upkeep for Durability
Proactive upkeep is vital for any oil submersed transformer. A thorough program must consist of:
1. Normal Oil Sampling and Testing: Routine DGA and screening of dielectric strength and moisture content are the most reliable ways to analyze the health and wellness of the transformer.
2. Bushing and Insulation Examination: Aesthetic look for fractures, contamination, or leaks.
3. Tap Changer Upkeep: Normal evaluation and servicing of on-load or off-load tap changers.
4. Keep it Tidy and Dry: Ensuring the storage tank outside, radiators, and breathers are tidy and functional.
The oil submersed transformer, in its roles as both a high-capacity oil submersed power transformer and a common oil immersed distribution transformer, stays an irreplaceable element of our global energy facilities. Its tried and tested design, paired with ongoing developments in protecting fluids and digital tracking, ensures it will remain to be a reputable, effective, and intelligent service for powering our world for decades to come. As we construct the grids of the future, incorporating even more renewables and digital intelligence, the robust and versatile oil submersed transformer will unquestionably be at the heart of it.
