Discover the extensive guide to oil immersed transformers, including oil submersed power transformers and oil immersed distribution transformers. Discover their working principles, types, advantages, and progressing function in wise grids and renewable energy.
1. Introduction to Oil Immersed Transformers
In the detailed web of our modern electrical grid, transformers play a vital function, calmly stepping voltage up and down to make certain electrical energy can be sent efficiently over cross countries and distributed safely to our homes and industries. Among the numerous kinds offered, the oil immersed transformer stands as a testimony to tried and tested reliability and resilience. For years, these workhorses have formed the foundation of power systems worldwide.
An oil submersed transformer is a kind of electric transformer that makes use of a specific insulating oil as both a coolant and a protecting medium. This style is primarily made use of for medium to high-power applications, making it a cornerstone of electric facilities. This guide dives deep into the globe of oil immersed power transformers and oil immersed circulation transformers, discovering their innovation, applications, and their evolving function in a period of digitalization and renewable resource.
1.1 What is an Oil Immersed Transformer?
At its core, an oil submersed transformer includes a magnetic core and copper or aluminum windings housed inside a secured tank filled with insulating oil. The key function of the oil is twofold:
1. Insulation: The oil possesses high dielectric stamina, successfully insulating the high-voltage windings from the transformer’s core and based storage tank. This avoids short circuits and electrical break downs.
2. Cooling: As the transformer operates, the windings generate substantial warm as a result of I ² R losses. The circulating oil absorbs this heat, convects it to the transformer’s tank wall surfaces, and dissipates it into the surrounding air. Bigger units typically feature radiators or fins to increase the surface for more reliable cooling.
This dual-purpose use of oil makes the oil submersed transformer exceptionally efficient and robust, capable of managing high loads and holding up against short-term overloads better than several dry-type alternatives.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these systems are oil immersed transformers, they serve unique functions within the power system network. Comprehending the difference is crucial.
An oil submersed power transformer is a heavyweight, typically used in transmission networks at creating terminals and significant substations. Their main function is to “step-up” the voltage created at the power plant to extremely high degrees (e.g., 138 kV, 230 kV, 500 kV and above) for efficient long-distance transmission, and to “step-down” the voltage at obtaining substations for further circulation. They are defined by their really high power ratings (usually exceeding 100 MVA), intricate building and construction, and on-load faucet changers for voltage policy.
An oil involved circulation transformer, on the other hand, performs the last action in the power distribution chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it down to the reduced voltages (e.g., 400/230 V) used by industrial and residential consumers. You typically locate them on energy poles (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have reduced power rankings (usually up to 2,500 kVA), and are designed for maximum effectiveness at reduced, more consistent lots.

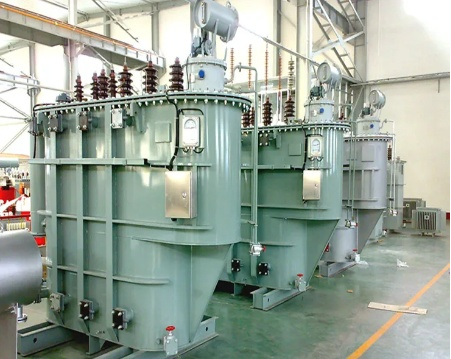

(Oil immersed power transformer)
2. Secret Benefits of Oil Immersed Transformers
The long-lasting popularity of the oil immersed transformer is not accidental. It uses a suite of engaging advantages that make it the favored option for lots of requiring applications.
2.1 Superior Air Conditioning and Overload Ability
The premium thermal ability of oil contrasted to air allows an oil submersed power transformer to handle and dissipate heat a lot more effectively. This converts to a higher overload capability. During durations of top electrical power need, an oil immersed transformer can handle temporary overloads without enduring damages, an important feature for preserving grid stability. The oil’s circulation makes sure also warmth circulation, stopping local locations that can degrade insulation with time.
2.2 Boosted Insulation and Long Life Span
The mix of high-grade mineral oil and diligently impregnated paper insulation produces a dielectric system of extraordinary strength. This robust insulation system protects the transformer from voltage surges and transients, adding to an operational life expectancy that can include 30-40 years or even more with appropriate maintenance. The sealed container likewise shields the inner components from moisture, dust, and various other climatic contaminants.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil immersed transformer is commonly the most affordable selection. The materials utilized– mineral oil, steel storage tank, and copper/aluminum windings– provide a favorable equilibrium of efficiency and price. The high performance of these transformers, specifically at their rated lots, leads to reduced energy losses over their life time, leading to substantial expense financial savings for energy firms and huge commercial customers.
3. Hot Subjects and Future Trends
The world of oil submersed transformers is not fixed. It is constantly evolving to fulfill brand-new challenges and incorporate with modern technologies.
3.1 Eco-friendly and Fire-Resistant Oils
Environmental and safety and security issues are driving a significant shift far from standard mineral oil. The marketplace is rapidly adopting oil submersed transformers loaded with biodegradable esters (artificial or natural). These oils offer a greater fire point (making them K-class fire-resistant), are less poisonous, and are easily eco-friendly, significantly decreasing the ecological influence in situation of a leak. This pattern is making oil immersed circulation transformers safer for installation in urban locations and eco delicate places.
3.2 Integration with Smart Grids and IoT
The modern oil immersed power transformer is coming to be an intelligent node in the clever grid. Sensors are being incorporated to keep an eye on crucial criteria in real-time, including:
Dissolved Gas Evaluation (DGA): Spotting mistake gases created within the oil to forecast incipient mistakes.
Temperature Tracking: Tracking top-oil and hotspot temperatures.
Load and Power Quality Surveillance.
This information, transmitted using IoT (Web of Things) systems, allows predictive maintenance, protects against unplanned failures, and maximizes transformer usage and life-span.
3.3 Sustaining the Renewable Energy Shift
The worldwide promote renewables is creating new need for oil submersed transformers. Large solar farms and wind power installments call for robust oil immersed power transformers to step up the produced voltage to transmission degrees. Furthermore, the intermittent nature of renewables areas better anxiety on grid elements, and the proven dependability and overload ability of oil submersed transformers make them optimal for this vital function.
4. Option and Upkeep Ideal Practices
Choosing the right transformer and preserving it properly is crucial to a reliable power system.
4.1 Exactly how to Select the Right Oil Immersed Transformer
Picking between an oil immersed power transformer and an oil submersed distribution transformer relies on the application. Key factors to consider include:
1. Voltage Level and kVA Score: Match the transformer’s specifications to your system’s needs.
2. Application: Transmission substation, industrial plant, or business distribution.
3. Place: Indoor vs. exterior, ecological problems, and fire security laws (which might influence the selection of shielding oil).
4. Effectiveness Requirements: Follow regional performance criteria like DOE (United States) or EU CoC (Europe).
5. Budget: Take into consideration both the preliminary capital expense and the complete cost of possession, consisting of losses.

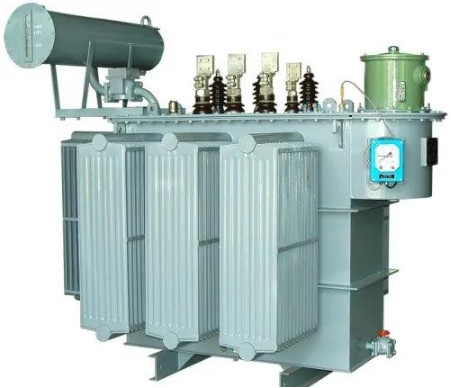

(Oil immersed distribution transformer)
4.2 Important Maintenance for Durability
Proactive maintenance is vital for any type of oil immersed transformer. An extensive program must consist of:
1. Regular Oil Sampling and Testing: Regular DGA and testing of dielectric strength and wetness web content are one of the most reliable ways to analyze the wellness of the transformer.
2. Bushing and Insulation Inspection: Visual checks for cracks, contamination, or leaks.
3. Tap Changer Upkeep: Routine evaluation and servicing of on-load or off-load faucet changers.
4. Maintain it Tidy and Dry: Guaranteeing the tank exterior, radiators, and rests are tidy and functional.
The oil submersed transformer, in its roles as both a high-capacity oil submersed power transformer and a common oil immersed distribution transformer, continues to be an irreplaceable element of our worldwide energy infrastructure. Its tested style, combined with ongoing innovations in shielding fluids and digital surveillance, guarantees it will certainly remain to be a trusted, efficient, and smart solution for powering our world for years to find. As we build the grids of the future, incorporating even more renewables and electronic intelligence, the durable and versatile oil submersed transformer will most certainly be at the heart of it.
