1. Material Principles and Crystallographic Properties
1.1 Stage Make-up and Polymorphic Actions

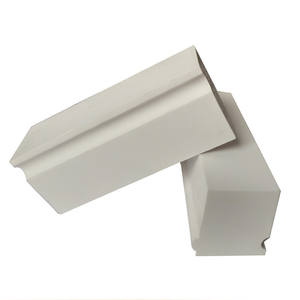

(Alumina Ceramic Blocks)
Alumina (Al ₂ O FOUR), especially in its α-phase type, is just one of the most widely made use of technological porcelains as a result of its excellent equilibrium of mechanical strength, chemical inertness, and thermal stability.
While light weight aluminum oxide exists in a number of metastable phases (γ, δ, θ, κ), α-alumina is the thermodynamically steady crystalline framework at high temperatures, identified by a thick hexagonal close-packed (HCP) setup of oxygen ions with light weight aluminum cations occupying two-thirds of the octahedral interstitial sites.
This bought structure, referred to as corundum, confers high lattice energy and solid ionic-covalent bonding, leading to a melting point of around 2054 ° C and resistance to phase transformation under severe thermal conditions.
The transition from transitional aluminas to α-Al two O two normally takes place above 1100 ° C and is gone along with by significant quantity shrinkage and loss of surface, making phase control vital during sintering.
High-purity α-alumina blocks (> 99.5% Al Two O FOUR) exhibit exceptional performance in extreme atmospheres, while lower-grade compositions (90– 95%) might consist of second stages such as mullite or glassy grain limit phases for cost-efficient applications.
1.2 Microstructure and Mechanical Honesty
The performance of alumina ceramic blocks is exceptionally influenced by microstructural functions including grain dimension, porosity, and grain border cohesion.
Fine-grained microstructures (grain dimension < 5 µm) normally provide higher flexural strength (as much as 400 MPa) and enhanced fracture toughness compared to coarse-grained equivalents, as smaller sized grains hinder crack propagation.
Porosity, also at low levels (1– 5%), significantly reduces mechanical stamina and thermal conductivity, necessitating complete densification via pressure-assisted sintering approaches such as warm pressing or warm isostatic pushing (HIP).
Additives like MgO are frequently introduced in trace amounts (≈ 0.1 wt%) to hinder abnormal grain development throughout sintering, guaranteeing uniform microstructure and dimensional security.
The resulting ceramic blocks exhibit high firmness (≈ 1800 HV), excellent wear resistance, and low creep rates at elevated temperatures, making them suitable for load-bearing and rough environments.
2. Production and Handling Techniques

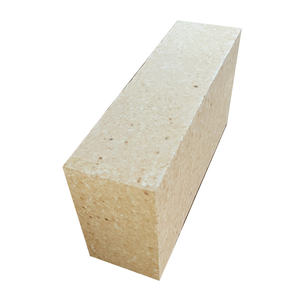

( Alumina Ceramic Blocks)
2.1 Powder Prep Work and Shaping Approaches
The manufacturing of alumina ceramic blocks starts with high-purity alumina powders originated from calcined bauxite via the Bayer procedure or synthesized with rainfall or sol-gel courses for higher purity.
Powders are milled to attain slim fragment size circulation, boosting packing density and sinterability.
Forming into near-net geometries is achieved through different developing strategies: uniaxial pressing for easy blocks, isostatic pressing for consistent density in intricate forms, extrusion for long sections, and slip casting for intricate or big elements.
Each approach affects eco-friendly body thickness and homogeneity, which straight influence final properties after sintering.
For high-performance applications, advanced forming such as tape casting or gel-casting might be utilized to achieve superior dimensional control and microstructural harmony.
2.2 Sintering and Post-Processing
Sintering in air at temperatures in between 1600 ° C and 1750 ° C allows diffusion-driven densification, where bit necks grow and pores shrink, causing a totally thick ceramic body.
Atmosphere control and exact thermal profiles are vital to stop bloating, warping, or differential shrinkage.
Post-sintering operations consist of ruby grinding, splashing, and polishing to accomplish limited tolerances and smooth surface area coatings needed in securing, gliding, or optical applications.
Laser reducing and waterjet machining permit exact modification of block geometry without causing thermal stress.
Surface area treatments such as alumina finishing or plasma splashing can additionally boost wear or corrosion resistance in specialized solution problems.
3. Functional Properties and Efficiency Metrics
3.1 Thermal and Electrical Habits
Alumina ceramic blocks display moderate thermal conductivity (20– 35 W/(m · K)), dramatically higher than polymers and glasses, allowing effective warmth dissipation in digital and thermal monitoring systems.
They keep structural honesty as much as 1600 ° C in oxidizing ambiences, with low thermal development (≈ 8 ppm/K), contributing to excellent thermal shock resistance when appropriately developed.
Their high electrical resistivity (> 10 ¹⁴ Ω · centimeters) and dielectric strength (> 15 kV/mm) make them perfect electrical insulators in high-voltage environments, consisting of power transmission, switchgear, and vacuum systems.
Dielectric continuous (εᵣ ≈ 9– 10) stays steady over a broad regularity range, sustaining usage in RF and microwave applications.
These residential properties enable alumina obstructs to work reliably in settings where natural products would certainly weaken or fail.
3.2 Chemical and Environmental Toughness
One of one of the most beneficial characteristics of alumina blocks is their exceptional resistance to chemical attack.
They are very inert to acids (except hydrofluoric and hot phosphoric acids), alkalis (with some solubility in solid caustics at elevated temperatures), and molten salts, making them ideal for chemical processing, semiconductor construction, and pollution control devices.
Their non-wetting actions with many liquified metals and slags permits use in crucibles, thermocouple sheaths, and furnace linings.
Furthermore, alumina is non-toxic, biocompatible, and radiation-resistant, expanding its utility into medical implants, nuclear securing, and aerospace elements.
Very little outgassing in vacuum cleaner environments additionally qualifies it for ultra-high vacuum (UHV) systems in research study and semiconductor production.
4. Industrial Applications and Technical Integration
4.1 Architectural and Wear-Resistant Parts
Alumina ceramic blocks function as crucial wear elements in sectors varying from mining to paper production.
They are utilized as liners in chutes, hoppers, and cyclones to withstand abrasion from slurries, powders, and granular products, substantially prolonging life span contrasted to steel.
In mechanical seals and bearings, alumina obstructs give reduced rubbing, high firmness, and rust resistance, decreasing maintenance and downtime.
Custom-shaped blocks are integrated right into cutting devices, dies, and nozzles where dimensional stability and edge retention are extremely important.
Their lightweight nature (thickness ≈ 3.9 g/cm SIX) likewise contributes to power financial savings in moving parts.
4.2 Advanced Design and Arising Makes Use Of
Beyond standard functions, alumina blocks are significantly employed in sophisticated technical systems.
In electronics, they function as protecting substratums, warmth sinks, and laser dental caries components as a result of their thermal and dielectric residential or commercial properties.
In power systems, they serve as strong oxide gas cell (SOFC) components, battery separators, and fusion reactor plasma-facing materials.
Additive production of alumina by means of binder jetting or stereolithography is arising, enabling complex geometries formerly unattainable with conventional creating.
Crossbreed structures incorporating alumina with metals or polymers via brazing or co-firing are being developed for multifunctional systems in aerospace and defense.
As product science breakthroughs, alumina ceramic blocks continue to evolve from easy structural aspects right into active elements in high-performance, sustainable engineering options.
In summary, alumina ceramic blocks stand for a foundational course of innovative porcelains, integrating robust mechanical efficiency with extraordinary chemical and thermal stability.
Their adaptability across industrial, digital, and clinical domain names underscores their long-lasting value in contemporary engineering and modern technology advancement.
