1. Fundamentals of Foam Generation and the Duty in Lightweight Concrete Solution
1.1 Principles of Air Entrainment and Mobile Framework Development

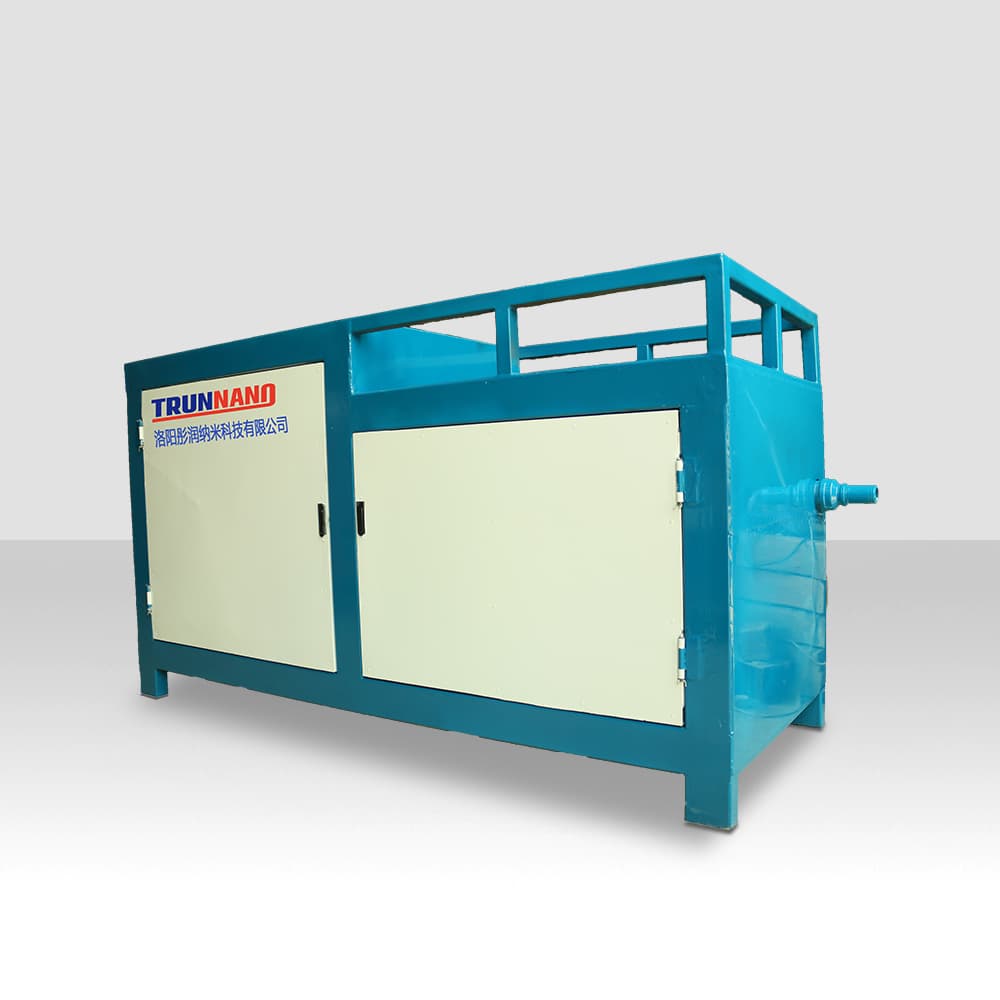

(Lightweight Concrete Foam Generators)
Light-weight concrete, a class of building products characterized by lowered density and enhanced thermal insulation, depends basically on the controlled intro of air or gas voids within a cementitious matrix– a process called frothing.
The production of these evenly distributed, steady air cells is attained through the use of a specialized tool called a foam generator, which creates penalty, microscale bubbles that are subsequently blended into the concrete slurry.
These bubbles, usually varying from 50 to 500 micrometers in diameter, end up being permanently entrained upon cement hydration, leading to a cellular concrete structure with considerably reduced unit weight– often in between 300 kg/m five and 1,800 kg/m THREE– compared to conventional concrete (~ 2,400 kg/m THREE).
The foam generator is not just a complementary device however an essential design component that determines the quality, uniformity, and efficiency of the last lightweight concrete item.
The procedure begins with a fluid foaming representative, normally a protein-based or artificial surfactant option, which is introduced into the generator where it is mechanically or pneumatically spread into a thick foam with high shear or compressed air injection.
The security and bubble size circulation of the produced foam straight influence key material homes such as compressive stamina, thermal conductivity, and workability.
1.2 Classification and Operational Mechanisms of Foam Generators
Foam generators are broadly classified right into 3 key kinds based upon their functional concepts: low-pressure (or wet-film), high-pressure (or dynamic), and rotary (or centrifugal) systems.
Low-pressure generators make use of a permeable tool– such as a great mesh, fabric, or ceramic plate– where compressed air is compelled, creating bubbles as the frothing remedy moves over the surface area.
This technique produces relatively large, much less uniform bubbles and is commonly used for lower-grade applications where accurate control is less vital.
High-pressure systems, on the other hand, use a nozzle-based style where a high-velocity stream of pressed air shears the foaming fluid right into a penalty, uniform foam with narrow bubble size distribution.
These systems provide exceptional control over foam thickness and stability, making them perfect for structural-grade light-weight concrete and precast applications.

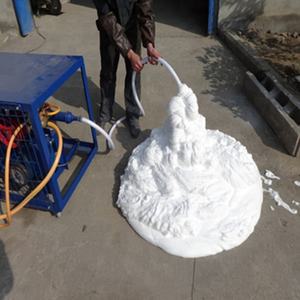

( Lightweight Concrete Foam Generators)
Rotary foam generators utilize a spinning disk or drum that flings the frothing option right into a stream of air, creating bubbles with mechanical dispersion.
While much less accurate than high-pressure systems, rotary generators are valued for their toughness, convenience of upkeep, and continuous outcome, suitable for massive on-site pouring operations.
The selection of foam generator type relies on project-specific needs, consisting of wanted concrete thickness, production quantity, and efficiency specs.
2. Product Science Behind Foam Stability and Concrete Performance
2.1 Foaming Brokers and Interfacial Chemistry
The effectiveness of a foam generator is inherently connected to the chemical composition and physical habits of the frothing representative.
Frothing representatives are surfactants that minimize the surface stress of water, enabling the formation of stable air-liquid interfaces.
Protein-based agents, stemmed from hydrolyzed keratin or albumin, create durable, elastic foam movies with exceptional security and are typically preferred in architectural applications.
Artificial agents, such as alkyl sulfonates or ethoxylated alcohols, provide faster foam generation and lower cost however might produce much less stable bubbles under prolonged mixing or unfavorable ecological problems.
The molecular structure of the surfactant determines the density and mechanical strength of the lamellae (slim liquid films) bordering each bubble, which should resist coalescence and water drainage during blending and treating.
Additives such as viscosity modifiers, stabilizers, and pH buffers are frequently incorporated right into foaming options to boost foam persistence and compatibility with cement chemistry.
2.2 Influence of Foam Characteristics on Concrete Residence
The physical features of the created foam– bubble size, dimension distribution, air content, and foam thickness– straight dictate the macroscopic actions of lightweight concrete.
Smaller sized, consistently dispersed bubbles enhance mechanical toughness by lessening anxiety concentration points and creating an extra homogeneous microstructure.
Alternatively, larger or irregular bubbles can serve as defects, reducing compressive toughness and boosting leaks in the structure.
Foam security is just as important; early collapse or coalescence throughout blending bring about non-uniform density, partition, and reduced insulation performance.
The air-void system additionally influences thermal conductivity, with finer, closed-cell frameworks giving exceptional insulation due to entraped air’s low thermal diffusivity.
In addition, the water content of the foam affects the water-cement ratio of the final mix, demanding accurate calibration to avoid deteriorating the cement matrix or delaying hydration.
Advanced foam generators now integrate real-time tracking and feedback systems to preserve constant foam output, making sure reproducibility throughout sets.
3. Integration in Modern Construction and Industrial Applications
3.1 Structural and Non-Structural Uses of Foamed Concrete
Lightweight concrete produced through foam generators is employed throughout a broad spectrum of construction applications, varying from insulation panels and void loading to bearing walls and pavement systems.
In structure envelopes, foamed concrete gives superb thermal and acoustic insulation, adding to energy-efficient layouts and reduced cooling and heating tons.
Its reduced thickness also decreases structural dead lots, allowing for smaller sized foundations and longer spans in skyscraper and bridge building and construction.
In civil engineering, it is used for trench backfilling, tunneling, and slope stablizing, where its self-leveling and low-stress features avoid ground disturbance and improve safety.
Precast producers utilize high-precision foam generators to produce light-weight blocks, panels, and building components with tight dimensional tolerances and regular top quality.
Furthermore, foamed concrete exhibits inherent fire resistance as a result of its reduced thermal conductivity and absence of organic parts, making it suitable for fire-rated assemblies and easy fire protection systems.
3.2 Automation, Scalability, and On-Site Production Solutions
Modern building and construction demands fast, scalable, and dependable manufacturing of light-weight concrete, driving the integration of foam generators right into automatic batching and pumping systems.
Totally automated plants can synchronize foam generation with concrete blending, water dosing, and additive shot, enabling constant production with minimal human treatment.
Mobile foam generator devices are progressively deployed on building and construction websites, permitting on-demand construction of foamed concrete directly at the factor of usage, decreasing transport expenses and product waste.
These systems are often furnished with digital controls, remote surveillance, and data logging abilities to make certain compliance with engineering requirements and high quality requirements.
The scalability of foam generation modern technology– from little portable units to industrial-scale systems– supports its adoption in both established and emerging markets, promoting sustainable building practices internationally.
4. Technical Innovations and Future Instructions in Foam Generation
4.1 Smart Foam Generators and Real-Time Refine Control
Emerging innovations in foam generator layout focus on boosting accuracy, performance, and versatility with digitalization and sensor assimilation.
Smart foam generators furnished with stress sensing units, flow meters, and optical bubble analyzers can dynamically readjust air-to-liquid proportions and screen foam quality in actual time.
Artificial intelligence formulas are being checked out to forecast foam actions based upon ecological problems, raw material variations, and historical performance information.
Such innovations aim to lessen batch-to-batch variability and enhance product performance, especially in high-stakes applications like nuclear securing or overseas building and construction.
4.2 Sustainability, Environmental Effect, and Green Product Combination
As the construction industry moves toward decarbonization, foam generators contribute in reducing the ecological footprint of concrete.
By reducing material density, less concrete is required per unit quantity, straight minimizing carbon monoxide two exhausts connected with cement production.
Additionally, lathered concrete can incorporate supplemental cementitious products (SCMs) such as fly ash, slag, or silica fume, enhancing sustainability without jeopardizing efficiency.
Research study is also underway to create bio-based frothing representatives originated from sustainable sources, lessening dependence on petrochemical surfactants.
Future growths might consist of energy-efficient foam generation methods, integration with carbon capture technologies, and recyclable concrete formulas made it possible for by stable mobile structures.
To conclude, the lightweight concrete foam generator is even more than a mechanical device– it is an essential enabler of advanced product engineering in modern building.
By exactly controlling the architecture of air voids at the microscale, it changes standard concrete right into a multifunctional, sustainable, and high-performance product.
As technology evolves, foam generators will continue to drive technology in building science, facilities strength, and environmental stewardship.
