1. Architectural Features and Synthesis of Spherical Silica
1.1 Morphological Definition and Crystallinity

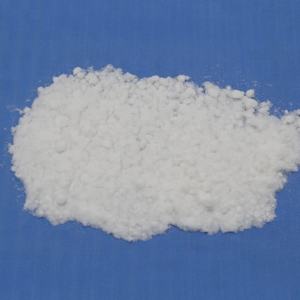

(Spherical Silica)
Spherical silica refers to silicon dioxide (SiO ₂) particles engineered with a very consistent, near-perfect round form, identifying them from standard uneven or angular silica powders derived from natural resources.
These fragments can be amorphous or crystalline, though the amorphous kind dominates industrial applications due to its superior chemical security, reduced sintering temperature, and lack of phase transitions that might induce microcracking.
The round morphology is not normally widespread; it must be synthetically achieved through controlled procedures that regulate nucleation, development, and surface area energy reduction.
Unlike crushed quartz or merged silica, which display rugged sides and broad size circulations, round silica features smooth surfaces, high packing thickness, and isotropic actions under mechanical tension, making it suitable for accuracy applications.
The fragment size typically ranges from tens of nanometers to a number of micrometers, with limited control over size circulation making it possible for foreseeable efficiency in composite systems.
1.2 Controlled Synthesis Pathways
The primary technique for producing spherical silica is the Stöber procedure, a sol-gel method established in the 1960s that entails the hydrolysis and condensation of silicon alkoxides– most typically tetraethyl orthosilicate (TEOS)– in an alcoholic option with ammonia as a catalyst.
By changing criteria such as reactant concentration, water-to-alkoxide proportion, pH, temperature level, and reaction time, scientists can precisely tune particle size, monodispersity, and surface area chemistry.
This method returns extremely consistent, non-agglomerated balls with exceptional batch-to-batch reproducibility, essential for state-of-the-art production.
Different techniques include fire spheroidization, where irregular silica particles are thawed and improved right into spheres via high-temperature plasma or flame therapy, and emulsion-based methods that allow encapsulation or core-shell structuring.
For massive industrial manufacturing, salt silicate-based rainfall courses are likewise utilized, offering cost-efficient scalability while maintaining appropriate sphericity and purity.
Surface functionalization during or after synthesis– such as grafting with silanes– can present organic groups (e.g., amino, epoxy, or vinyl) to improve compatibility with polymer matrices or make it possible for bioconjugation.

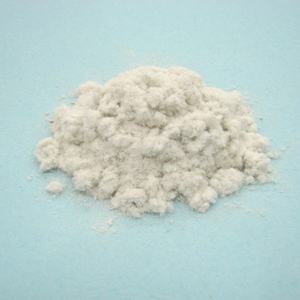

( Spherical Silica)
2. Useful Residences and Performance Advantages
2.1 Flowability, Packing Thickness, and Rheological Habits
One of one of the most significant advantages of round silica is its exceptional flowability compared to angular equivalents, a residential property vital in powder processing, injection molding, and additive production.
The absence of sharp sides decreases interparticle friction, permitting dense, uniform packing with very little void room, which boosts the mechanical integrity and thermal conductivity of final compounds.
In digital product packaging, high packaging thickness straight converts to reduce material content in encapsulants, boosting thermal stability and reducing coefficient of thermal expansion (CTE).
In addition, spherical bits impart desirable rheological residential or commercial properties to suspensions and pastes, decreasing viscosity and stopping shear thickening, which makes sure smooth dispensing and uniform coating in semiconductor fabrication.
This controlled flow behavior is crucial in applications such as flip-chip underfill, where precise material positioning and void-free dental filling are called for.
2.2 Mechanical and Thermal Security
Spherical silica shows exceptional mechanical toughness and elastic modulus, contributing to the support of polymer matrices without causing stress concentration at sharp edges.
When incorporated into epoxy materials or silicones, it enhances hardness, put on resistance, and dimensional stability under thermal biking.
Its reduced thermal growth coefficient (~ 0.5 × 10 ⁻⁶/ K) carefully matches that of silicon wafers and published circuit card, reducing thermal mismatch stress and anxieties in microelectronic gadgets.
Additionally, round silica maintains architectural stability at elevated temperature levels (approximately ~ 1000 ° C in inert atmospheres), making it ideal for high-reliability applications in aerospace and automobile electronic devices.
The combination of thermal stability and electric insulation even more enhances its energy in power modules and LED packaging.
3. Applications in Electronic Devices and Semiconductor Industry
3.1 Role in Electronic Packaging and Encapsulation
Round silica is a foundation product in the semiconductor industry, mostly made use of as a filler in epoxy molding substances (EMCs) for chip encapsulation.
Replacing conventional irregular fillers with spherical ones has transformed product packaging modern technology by allowing greater filler loading (> 80 wt%), boosted mold circulation, and lowered wire sweep throughout transfer molding.
This development supports the miniaturization of incorporated circuits and the advancement of innovative packages such as system-in-package (SiP) and fan-out wafer-level product packaging (FOWLP).
The smooth surface of round bits likewise lessens abrasion of fine gold or copper bonding cables, boosting gadget integrity and yield.
Furthermore, their isotropic nature makes certain consistent tension circulation, lowering the risk of delamination and cracking throughout thermal biking.
3.2 Usage in Sprucing Up and Planarization Processes
In chemical mechanical planarization (CMP), round silica nanoparticles serve as abrasive representatives in slurries created to brighten silicon wafers, optical lenses, and magnetic storage space media.
Their consistent size and shape guarantee constant material elimination rates and very little surface defects such as scratches or pits.
Surface-modified spherical silica can be customized for specific pH atmospheres and reactivity, improving selectivity between different materials on a wafer surface area.
This accuracy enables the manufacture of multilayered semiconductor structures with nanometer-scale monotony, a prerequisite for advanced lithography and tool assimilation.
4. Emerging and Cross-Disciplinary Applications
4.1 Biomedical and Diagnostic Utilizes
Past electronic devices, round silica nanoparticles are progressively utilized in biomedicine because of their biocompatibility, simplicity of functionalization, and tunable porosity.
They act as medication delivery service providers, where restorative representatives are filled into mesoporous frameworks and launched in action to stimulations such as pH or enzymes.
In diagnostics, fluorescently labeled silica spheres work as secure, non-toxic probes for imaging and biosensing, exceeding quantum dots in specific biological environments.
Their surface area can be conjugated with antibodies, peptides, or DNA for targeted discovery of virus or cancer biomarkers.
4.2 Additive Production and Composite Materials
In 3D printing, particularly in binder jetting and stereolithography, round silica powders boost powder bed thickness and layer harmony, leading to greater resolution and mechanical stamina in printed porcelains.
As an enhancing phase in metal matrix and polymer matrix compounds, it enhances tightness, thermal management, and put on resistance without endangering processability.
Research is likewise discovering crossbreed particles– core-shell structures with silica coverings over magnetic or plasmonic cores– for multifunctional products in sensing and power storage space.
In conclusion, round silica exemplifies just how morphological control at the micro- and nanoscale can transform a typical material into a high-performance enabler throughout diverse modern technologies.
From securing integrated circuits to advancing medical diagnostics, its distinct mix of physical, chemical, and rheological buildings continues to drive innovation in scientific research and engineering.
